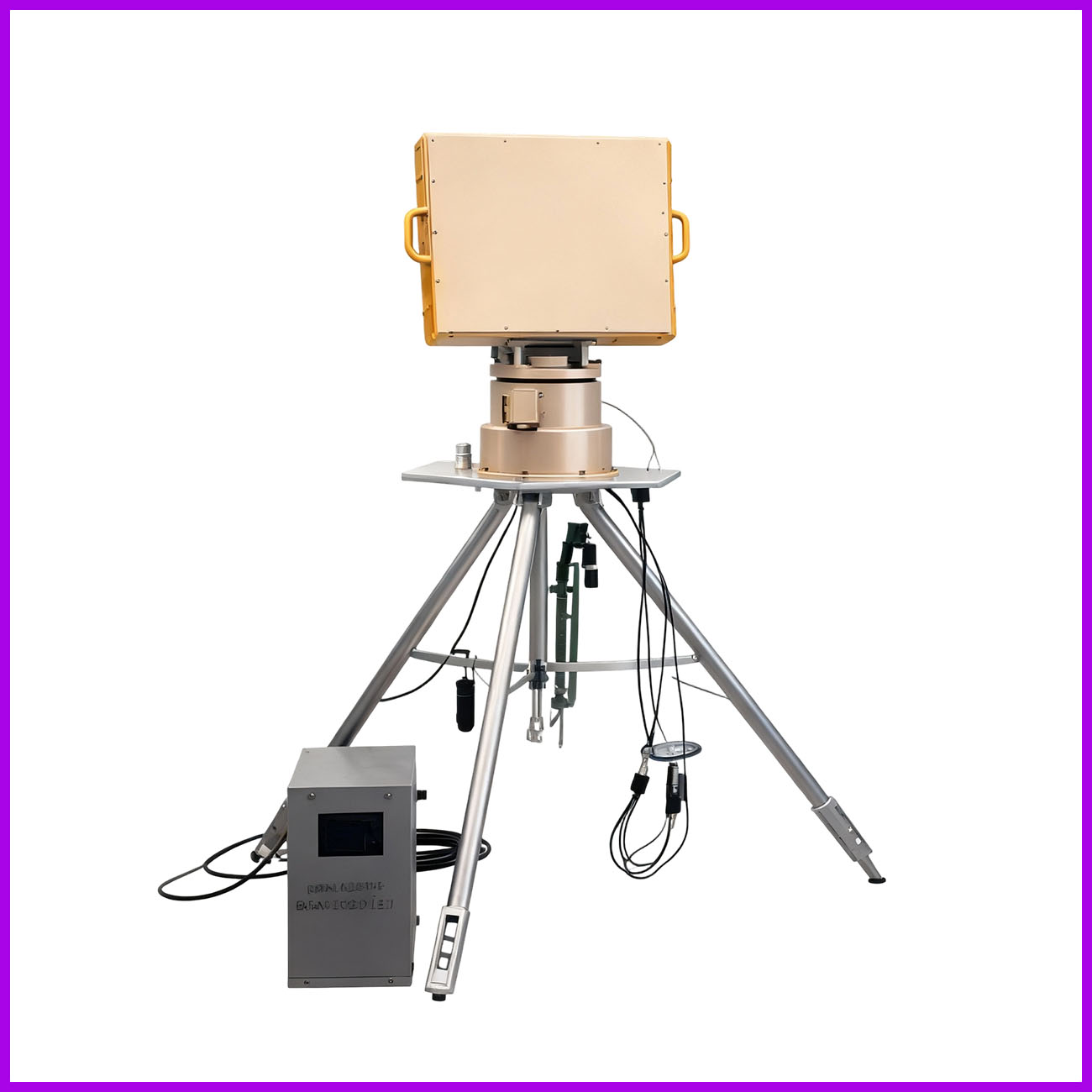

Target surveillance radar

Detection range greater than 3km

                                                                                                                                   Product Parameters

Project	Parameters
Frequency	Ku-band
Technical system	One dimensional active phased array three coordinate system
Scanning method	Directional machine scan+elecation phase scan
Detection range	≥3km@30*30cm
Detection range	360° azimuth and 30° elevation
Distance error	8m
Azimuth error	0.3°
Pitching error	0.3°
Target capacity	≤256
Speed test	1~80m/s
Data rate	1s
Weight	≤50kg
Size	500mm*300mm*680mm
Interface	Ethernet port(Gigabit Ethernet)
Power supply	DC 28V
Power consumption	≤400W
