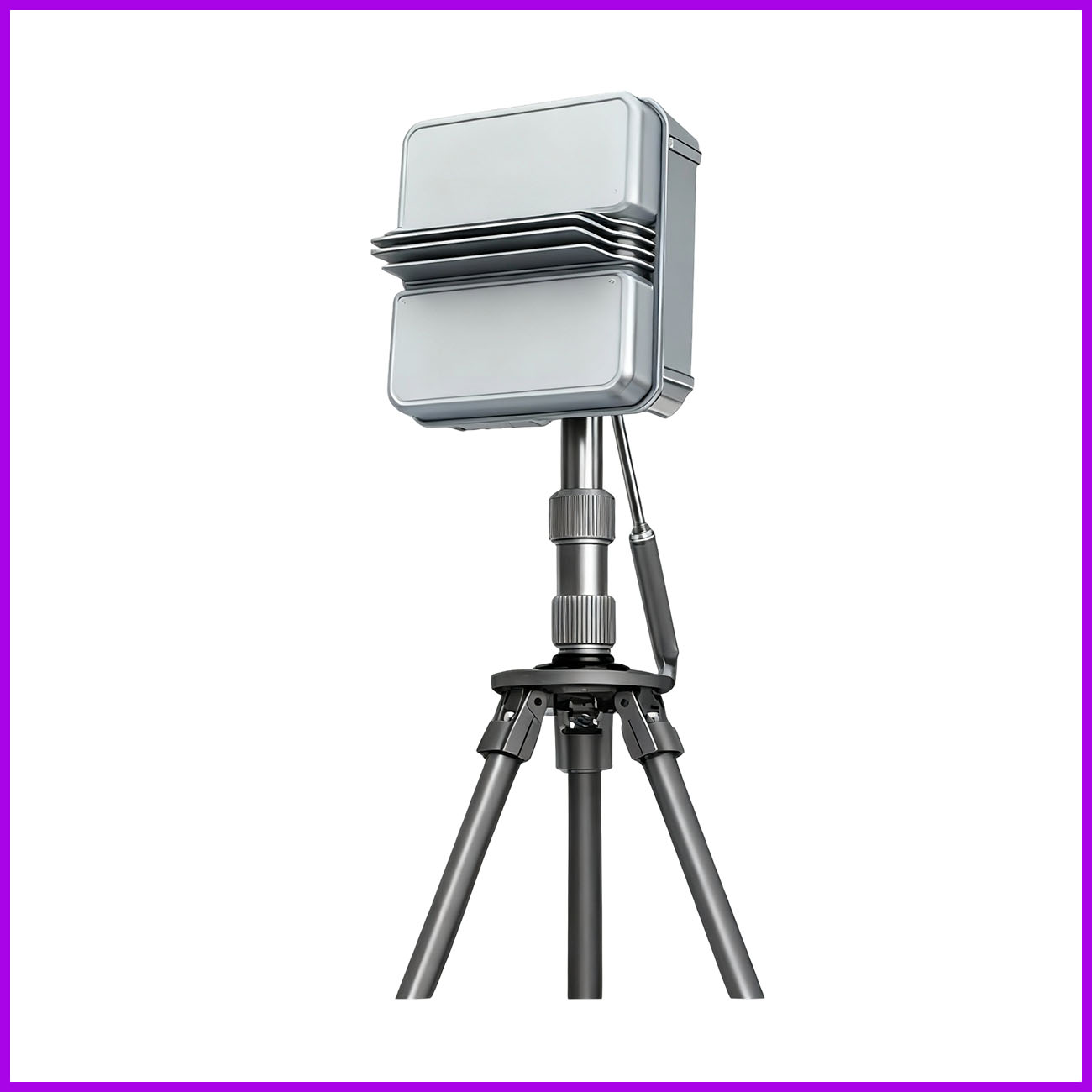

Short range active phased array radar

Detection range greater than 2km

                                                                                                                                      Product Parameters

Project	Parameters
Frequency	Ku-band
Technical system	One dimensional active phased array three coordinate system
Scanning method	Directional machine scan+elecation phase scan
Detection range	≥2km@30*30cm
Detection range	360° azimuth and 30° elevation
Distance error	5m
Azimuth error	0.6°
Pitching error	0.6°
Target capacity	≥100
Speed test	1~100m/s
Data rate	1s
Weight	≤24kg
Size	450mm*380mm*750mm
Interface	Ethernet port(Gigabit Ethernet)
Power supply	AC 220V
Power consumption	≤180W
