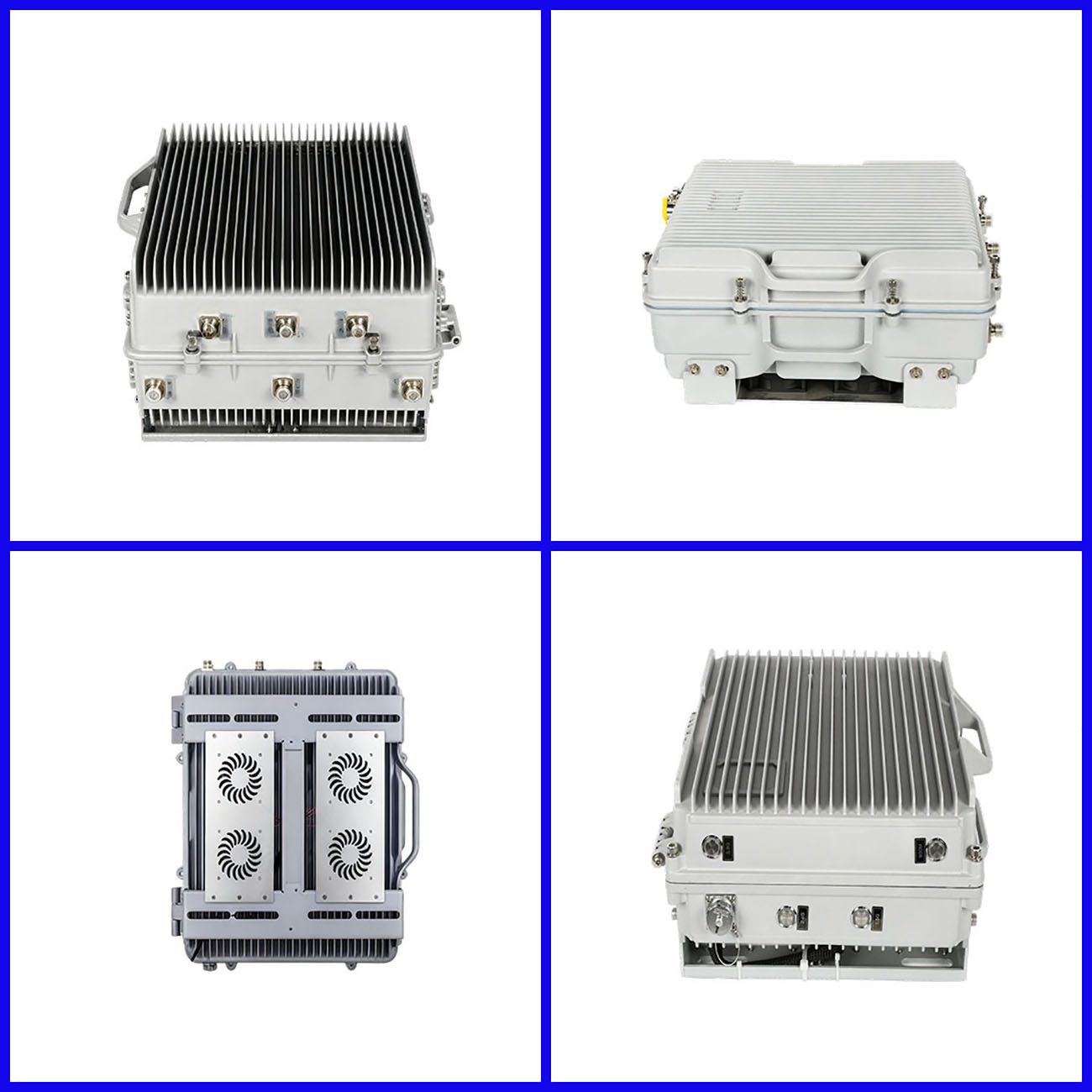

six-channel UAV anti-die casting aluminum box
Total RF power greater than 600W
Waterproof and rust-proof, profile heat dissipation design
Long-term duty

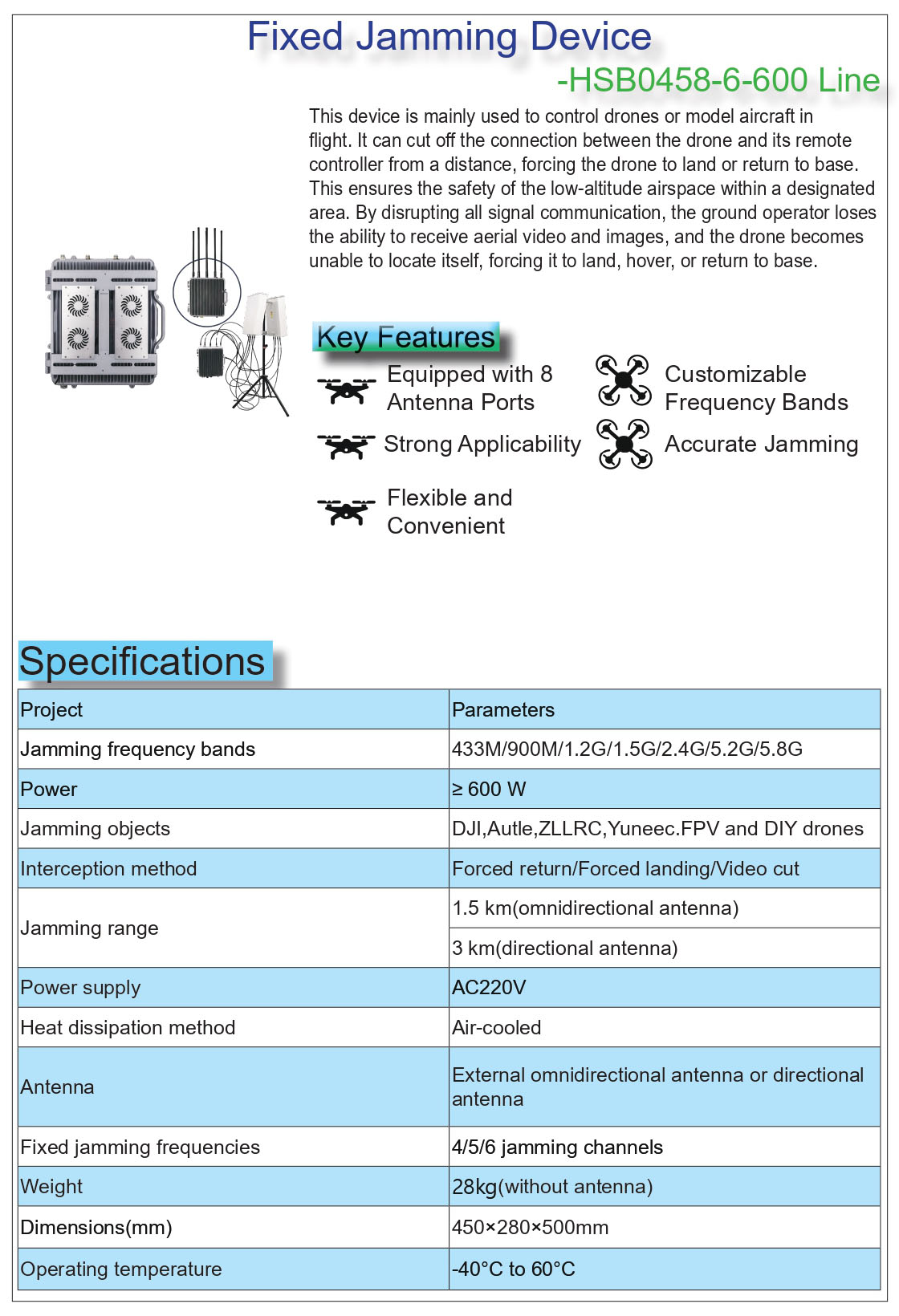

                                                                                                                 Product Parameters

Project	Parameters
Name	Six-channel die-cast aluminum UAV counter box
Frequency	900M/1.2G/1.5G/2.4G/5.2G/5.8GHz (other frequencies can be customized)
Power	greater than 600W
Interception Method	Interference with UAV positioning, remote control and image transmission; forced return, landing, hovering
Heat dissipation method	air-cooled
Antenna	External omnidirectional antenna or directional antenna
Control Distance	directional antenna 3000 meters, omnidirectional antenna 1500 meters
Power supply mode	external AC220V
Product Size	50*45*28cm (without antenna)
Weight	approx. 28kg (without antenna)
Working temperature	-40oC~+60oC



                                                                                                                       Product Accessories

Name	Quantity
Host	1 set
Antenna	6 omnidirectional antennas or 1 set of directional antennas
power cord	1 root
