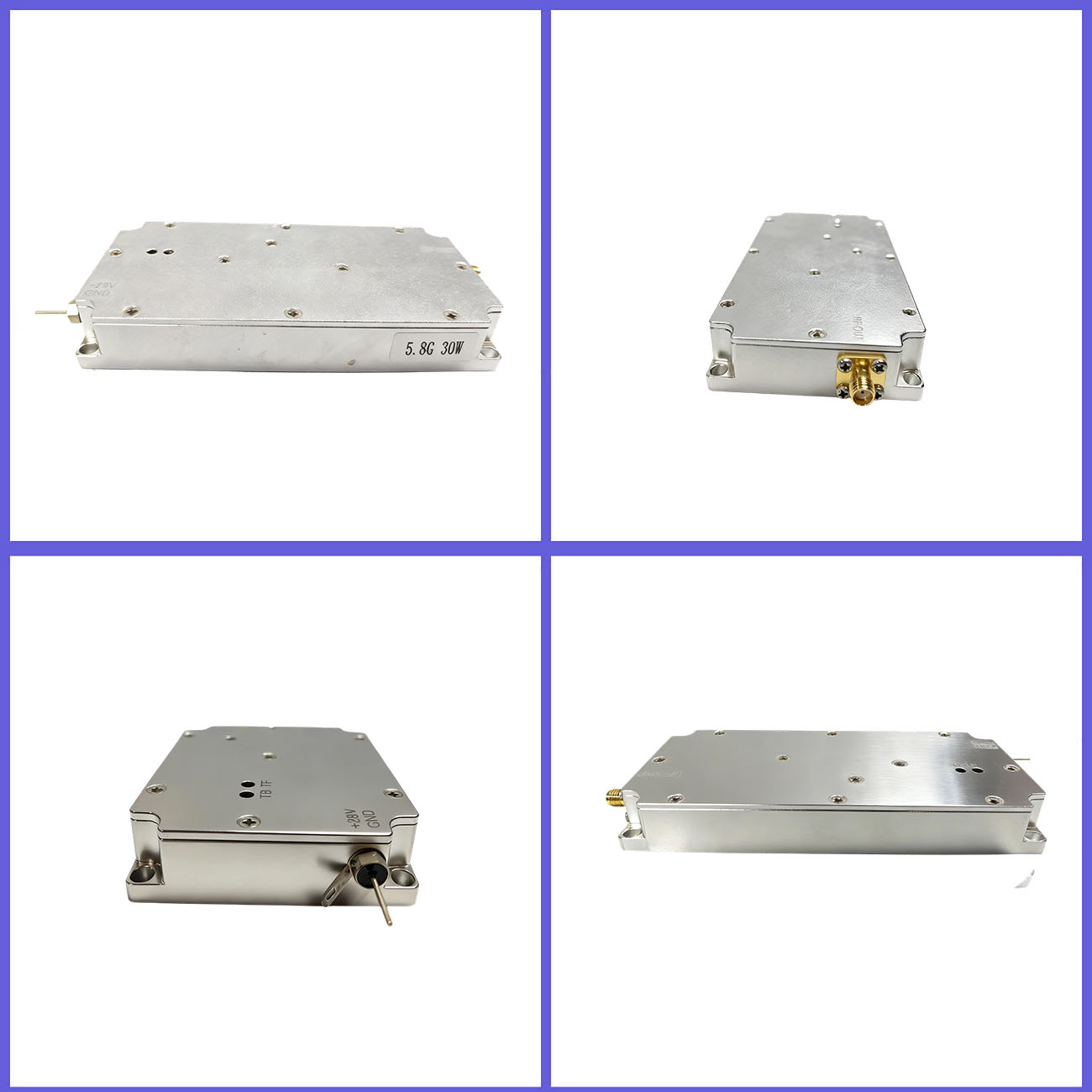

30W RF Amplifier Drone Jamming Module

5.2GHz 5.8GHz(Other frequencies can be customized)

Index	Technical Parameters
Operating Frequency	5690-5880MHz
Output CW Saturated Power	≥30W
Passband Ripple	≤1.5dB
Output Port Standing Wave	≤2.6
Clutter Suppression	≥65dBc
Harmonic Suppression	≥-8dBc
RF Output Interface	SMA-K (Internal hole and external thread)
Power Supply Interface	2P Sleeping Patch / Through-hole capacitor / Black and Red Lines (for options)
VCC Power Supply	DC 28V
VCC Max Voltage	+30V
Working Current	≤4.5A
Dimensions (excluding connectors)	127.5*59.5*18mm
Net Weight	0.3kg
Ambient Temperature	-25oC~+60oC
