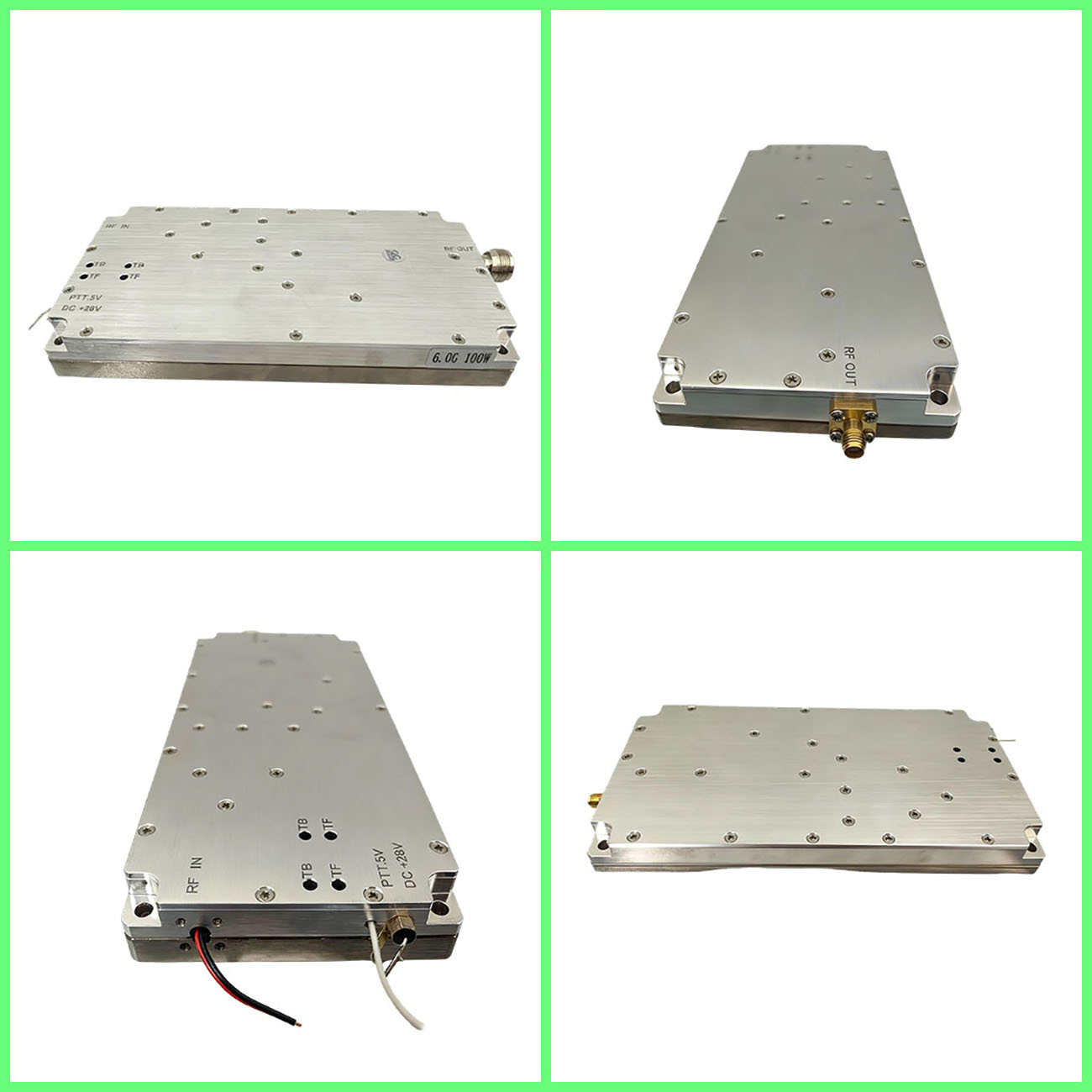

100W RF Amplifier UAV Interference Module High Power Amplifier Module

5.2GHz 5.8GHz(Other frequencies can be customized)

Index	Technical Parameters
Operating Frequency	5153-5350MHz
Output CW Saturated Power	≥100W
Passband Ripple	≤1.5dB
Output Port Standing Wave	≤2.6
Clutter Suppression	≥65dBc
Harmonic Suppression	≥-8dBc
RF Output Interface	SMA-K
Power Supply Interface	2P Sleeping Patch Through-hole capacitor Black and Red Wires
VCC Power Supply	DC 28V
VCC Max Voltage	+30V
Working Current	≤12A
Dimensions (excluding connectors)	186.5×89.8×17.4mm
Net Weight	0.95kg
Operation Temperature	-40oC~+60oC
