| Index | Technical Parameters |
| Operating Frequency | 5725-5850MHz |
| Output CW Saturated Power | ≥100W |
| Passband Ripple | ≤1.5dB |
| Output Port Standing Wave | ≤1.8 |
| Clutter Suppression | ≥65dBc |
| Harmonic Suppression | ≥-8dBc |

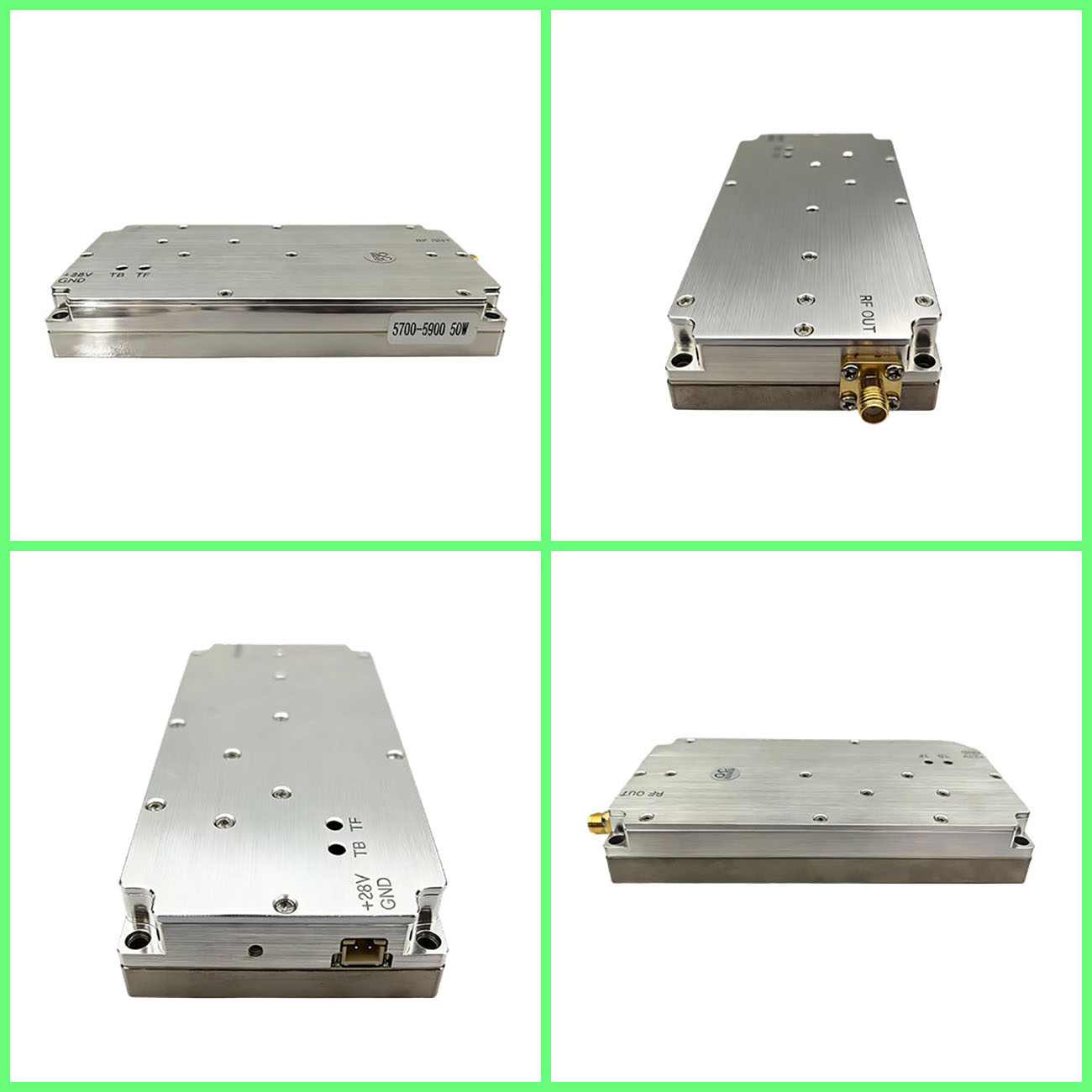

| RF Output Interface | SMA-K (Internal hole and external thread) |
| Power Supply Interface | 2P Sleeping Patch / Through-hole capacitor / Black and Red Wires (for options) |
| VCC Power Supply | DC 28V |
| VCC Max Voltage | +30V |
| Working Current | ≤10A |
| Dimensions (excluding connectors) | 127.2×60×18.8mm |
| Net Weight | 0.35kg |
| Operation Temperature | -40oC~+60oC |
