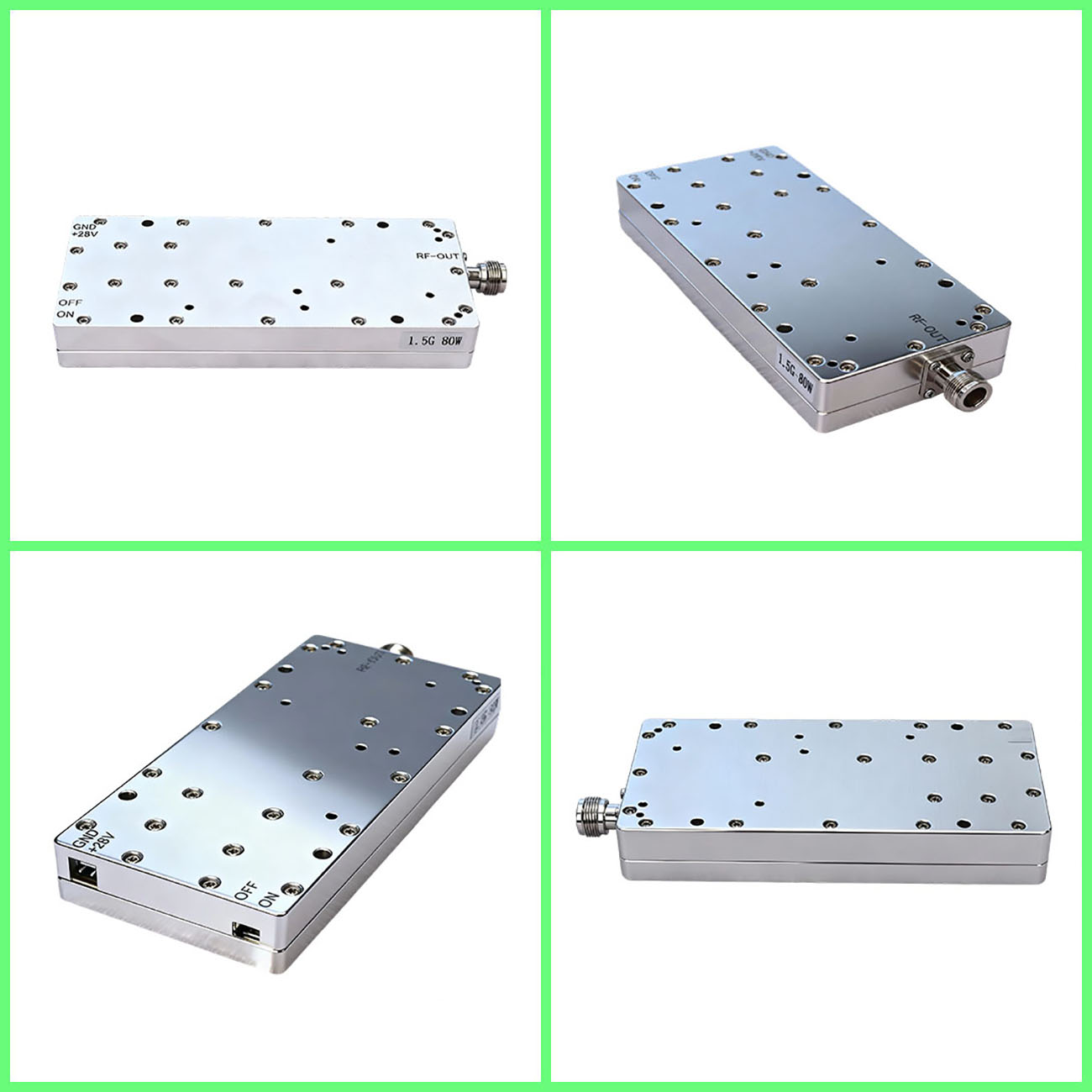

60W-70W-80W RF Power Amplifier Drone Interference Module 433M/800M/900M/1.2G/1.5G/2.4GHz(Other frequencies can be customized)

Index	Technical Parameters
Operating Frequency	1560-1620MHz
Output CW Saturated Power	≥80W
Passband Ripple	≤1.5dB
Output Port Standing Wave	≤2.6
Clutter Suppression	≥65dBc
Harmonic Suppression	≥-8dBc
RF Output Interface	N-female outer wire
Power Supply Interface	2P RECEPTACLE
VCC Power Supply	DC 28V
VCC Max Voltage	+30V
Working Current	≤8A
Dimensions (excluding connectors)	163×73×24mm(without joint)
Net Weight	0.55kg
Operation Temperature	-40oC~+60oC
