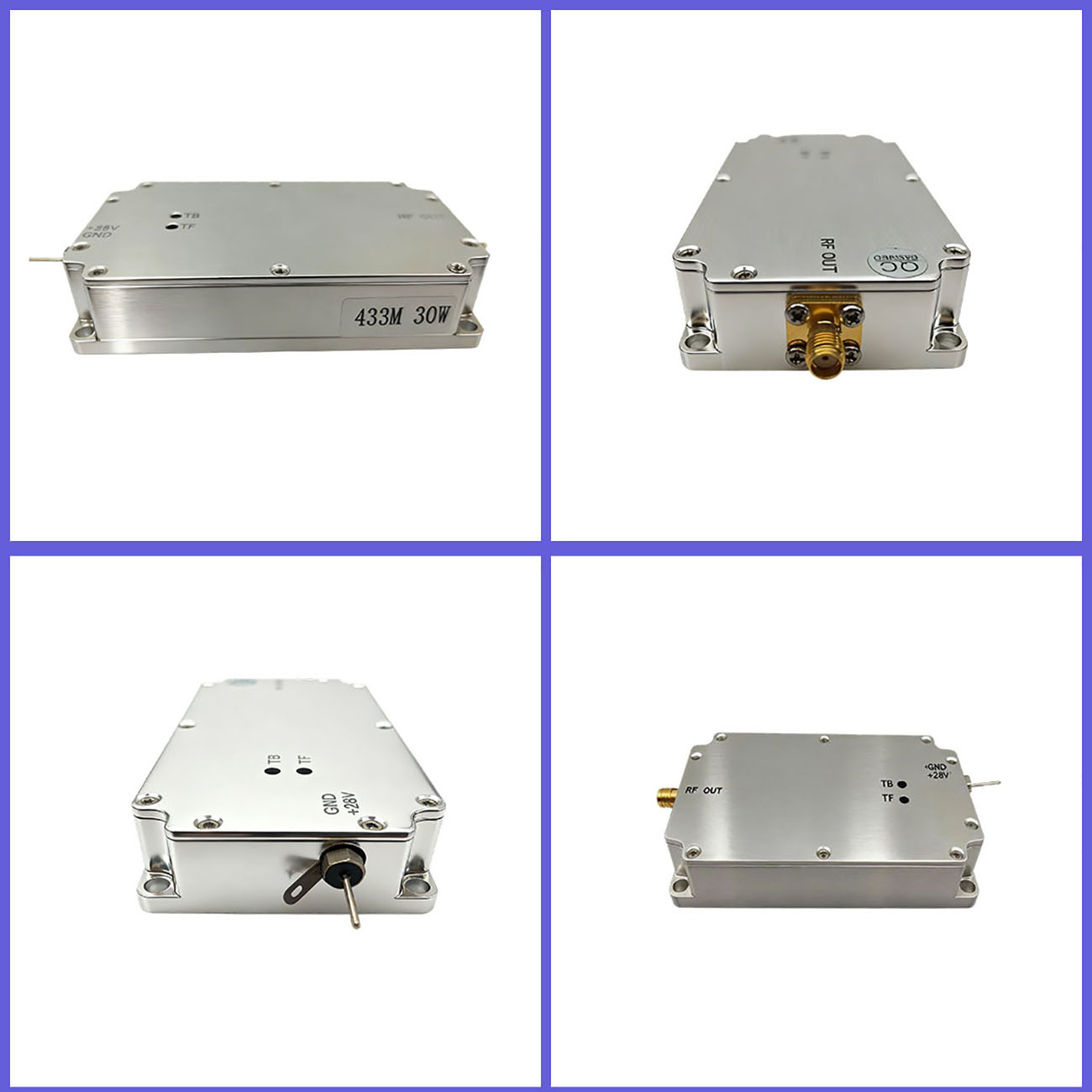

30W RF power amplifier drone interference module

433M/800M/900M/1.2G/1.5G/2.4GHz(Other frequencies can be customized)

Index	Technical Parameters
Operating Frequency	410-480MHz
CW Saturated Power Output	≥30W
Passband Ripple	≤1.5dB
Output Port Standing Wave	≤2.6
Clutter Suppression	≥65dBc
Harmonic Suppression	≥-8dBc
RF Output Interface	SMA-K (Internal hole and external thread)
Power Supply Interface	2P Sleeping Patch Through-hole capacitor Black and Red wires
VCC Power Supply	DC 28V
VCC Max Voltage	+30V
Working Current	≤3.3A
Dimensions (excluding connectors)	96×53×20mm
Net Weight	0.2kg
Operating Temperature	-40oC~+60oC
