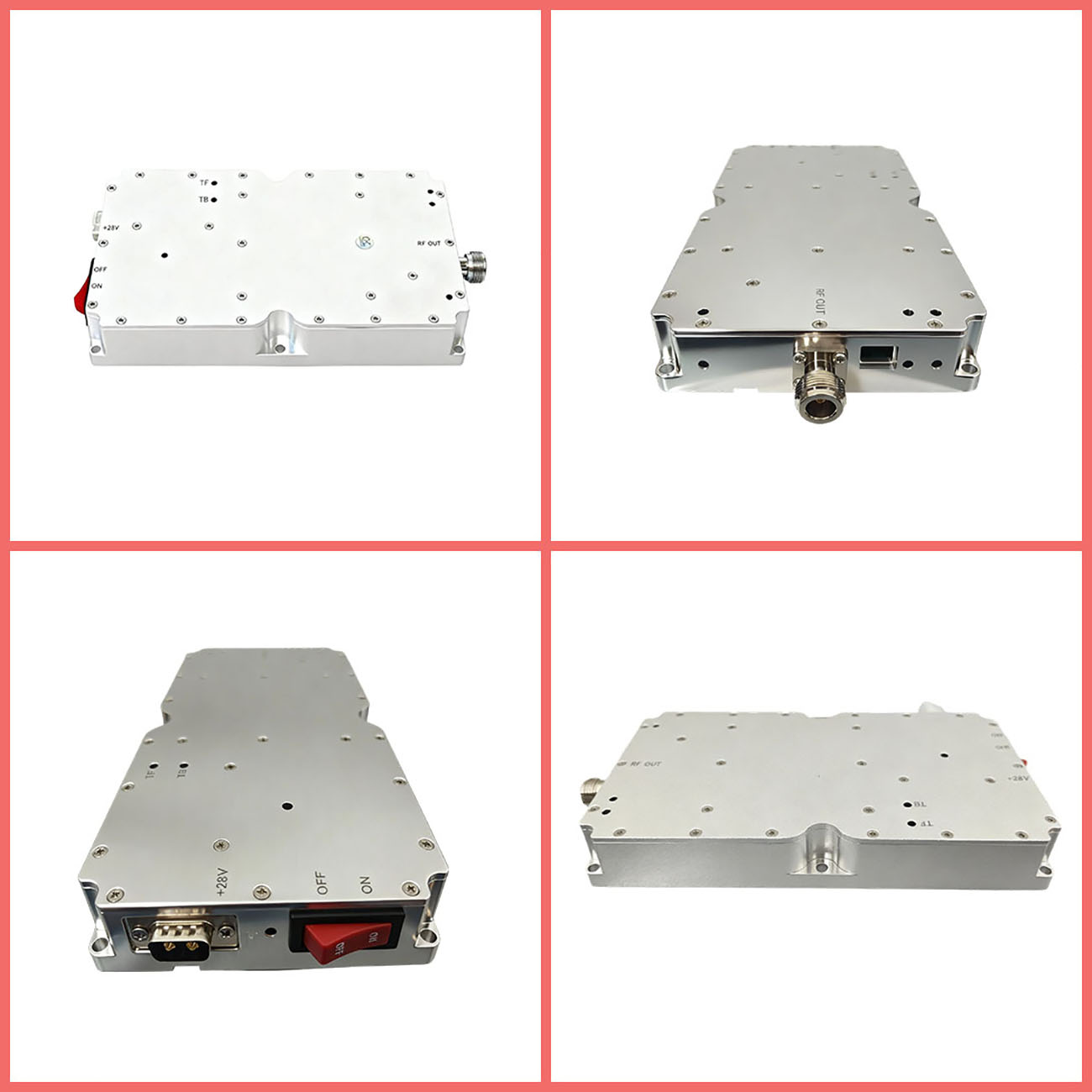

100 W-200W RF power amplifier drone interference module 433M/800M/900M/1.2G/1.5G/2.4GHz(Other frequencies can be customized)

Index	Technical Parameters
Operating Frequency	1560-1620MHz
Output CW Saturated Power	≥100W
Passband Ripple	≤1.5dB
Output Port Standing Wave	≤2.6
Clutter Suppression	≥65dBc
Harmonic Suppression	≥-8dBc
RF Output Interface	SMA-K (Internal hole and external thread)
Power Supply Interface	2P Sleeping Patch Through-hole capacitor Black and Red Lines
VCC Power Supply	DC 28V
VCC Max Voltage	+30V
Working Current	≤15A
Dimensions (excluding connectors)	199×109×27mm
Net Weight	1.0kg
Operation Temperature	-25oC~+60oC
