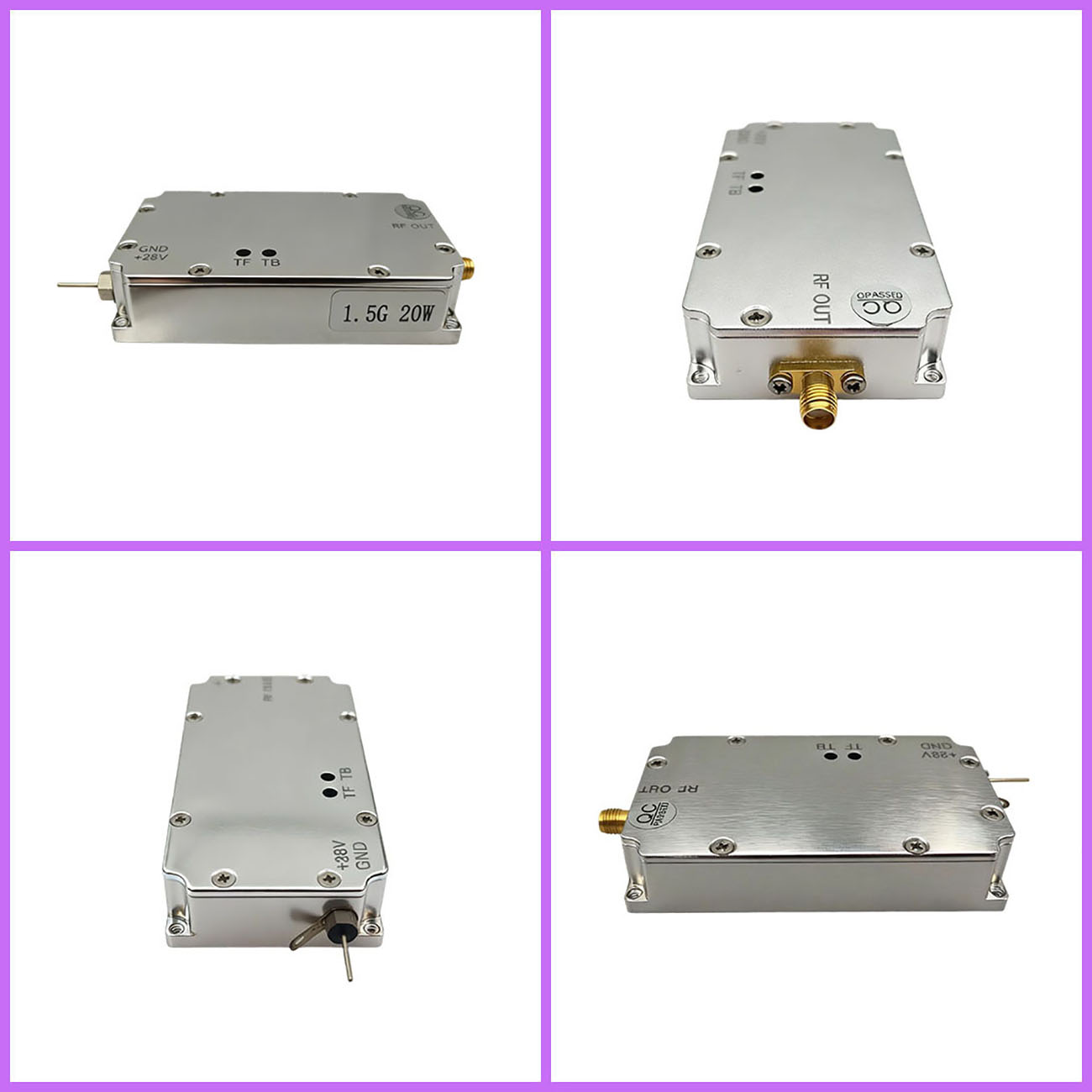

10-20W RF Power Amplifier Drone Interference Module 433M/800M/900M/1.2G/1.5G/2.4GHz (Other frequencies can be customized)

Index	Technical Parameters
Operating Frequency	1560-1620MHz
Output CW Saturated Power	≥20W
Passband Ripple	≤1.5dB
Output Port Standing Wave	≤2.6
Clutter Suppression	≥65dBc
Harmonic Suppression	≥-8dBc
RF Output Interface	SMA-K (Internal hole and external thread)
Power Supply Interface	2P Sleeping Patch Through-hole capacitor Black and Red Lines
VCC Power Supply	DC 28V
VCC Max Voltage	+30V
Working Current	≤1.6A
Dimensions (excluding connectors)	83×46×17 mm
Net Weight	0.1kg
Ambient Temperature	-40oC~+60oC
